int main()
{
  weak_wnd<gui::frame_window> w = create<gui::frame_window>
    ( _title = "Hello World!" );

The weak_wnd<> and wnd<> are reference counting smart pointers that holds and manages lifetime of window objects in user-code. The weak_wnd<> version doesn't give direct access to the window, and is meant to break cyclic references.

To get a wnd<> from a weak_wnd<> we must lock the weak_wnd<>. Like this:

create<gui::controls::button>
  ( _parent = w.lock(), _text = "Button1"
    , _size = std::make_pair(50, 50)
  );

The _parent parameter receives a wnd<> as argument.

Then we just call wait and wait, no pun intended, the user to close our window.

  gui::wait();
}

And here we have our first GUI window.

Creating user interfaces aren't only about creating views. Windows must respond to user actions.

In CppGui, all possible user actions are defined as signals and callbacks.

If we want to respond to button clicks, we must connect our handler to the click signal for the button instance we want to respond to.

We will use these directives to ease typing.

[helloworld1_using_directives]

First, we define our handler:

void click_signal_handler(weak_wnd<gui::frame_window> weak_frame
			  , wnd<gui::controls::button>)
{
  gui::wnd<gui::frame_window> frame = weak_frame.lock();
  if(frame)
    frame->close();
}

The handler closes our frame_window, which is received as argument. The other parameter is the pointer to the button to which the handler is registered.

After the button creation, we connect our handler.

 gui::wnd<gui::controls::button>
   btn = gui::create<gui::controls::button>
     ( _parent = w.lock()
, _text = "Button1"
, _size = std::make_pair(50, 50)
     );

 btn->click_signal().connect(boost::bind(&click_signal_handler, w, _1));

And done. Now our button responds to a button click by closing the window.

Often enough we want to create a customized class that works like a native widget, but which also has some predefined function and/or customized visual.

We will create a class that represents our main window, with menus. So, we will subclass from frame_window:

struct main_wnd : gui::subclass<main_wnd, gui::frame_window>
{

First we create member variables to hold our children windows, so that we can use them later to register signals.

wnd<gui::controls::menu> menu_bar;
wnd<gui::controls::menus::text_submenu> file_submenu;
wnd<gui::controls::menus::text_item> open_item, save_item, exit_item;

Then we can customize our widget visual within its constructor.

main_wnd()
{
  wnd<main_wnd> self = wnd_from_this();

When the constructor executes, the widget is already constructed, and can be used freely. This allows to use the constructor for customizing a subclassed widget. This is then the preferred way to subclass a widget in CppGui.

Then we use the wnd<main_wnd> returned from wnd_from_this as a _parent argument for creating the menus.

  menu_bar = create<gui::controls::menu>( _parent = self );
  file_submenu = create<gui::controls::menus::text_submenu>
    ( _parent = menu_bar, _text = "File" );
  open_item = create<gui::controls::menus::text_item>
    ( _parent = file_submenu, _text = "Open" );
  save_item = create<gui::controls::menus::text_item>
    ( _parent = file_submenu, _text = "Save" );
  exit_item = create<gui::controls::menus::text_item>
    ( _parent = file_submenu, _text = "Exit" );
}

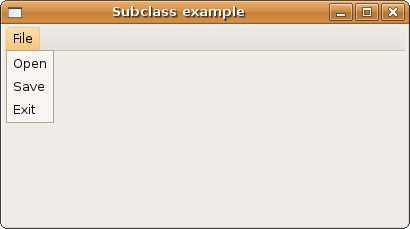

We then create the window and run the application:

int main()
{
  create<main_wnd>( _title = "Subclass example" );

  gui::wait();
}

We want our main_wnd widget to be created with 400x200 pixels of size. But we don't want to rely on our clients to pass a size argument. We have two options:

Use the resize function-member from window, which is subclassed by frame_window:

resize(400, 200);

Or you can define create parameters using a static function-member called create_wnd:

static void create_wnd(create_params& param)
{
  param.params( _size = std::make_pair(400, 200) );
}

The create_wnd function is executed by all classes that subclasses in its hierarchy.

Event classes are classes bound to a window lifetime. You can add event classes to windows and use them in handlers. This easiers decoupling window view with the handling code. It also helps with code locality.

Using event classes for the subclass example:

If we want the event class to connect the signals by itself, the window class must be defined before event class defintion, since we need the event class to be defined prior constructing it, we need to define main_wnd constructor's outside the class definition.

struct main_wnd : gui::subclass<main_wnd, gui::frame_window>
{
  wnd<gui::controls::menu> menu_bar;
  wnd<gui::controls::menus::text_submenu> file_submenu;
  wnd<gui::controls::menus::text_item> open_item, save_item, exit_item;

  main_wnd(); // just declare the constructor.

We then define the event class:

struct events
{
  events(wnd<main_wnd> w)
  {
    w->exit_item->click_signal().connect(w->use_event(&::events::exit));
  }

  void exit(wnd<main_wnd> w)
  {
    w->close();
  }
};

We use use_event function-member to say that we want to use a registered event class. This automatically passes the event class instance registered within the window to the handler.

main_wnd::main_wnd()
{
  wnd<main_wnd> self = wnd_from_this();

  menu_bar = create<gui::controls::menu>( _parent = self );
  file_submenu = create<gui::controls::menus::text_submenu>
    ( _parent = menu_bar, _text = "File" );
  open_item = create<gui::controls::menus::text_item>
    ( _parent = file_submenu, _text = "Open" );
  save_item = create<gui::controls::menus::text_item>
    ( _parent = file_submenu, _text = "Save" );
  exit_item = create<gui::controls::menus::text_item>
    ( _parent = file_submenu, _text = "Exit" );

  add_event_class(::events(self));
}

We add an event class with the add_event_class member-function. The instance is registered by type, so there can't be two instances of the same event class.

The event class helps maintain the controller state separate from the view implementation.
